Alexandria Phoenix
Parametric Studies
Studies run with the Alexandria Phoenix components
Abstract
Each study runs a set of components through every variation worth comparing, as a Grasshopper definition built to the Phoenix standard, and records what each one draws. The definitions and their Rhino files are in the repository’s grasshopper_definitions folder.
Studies
-

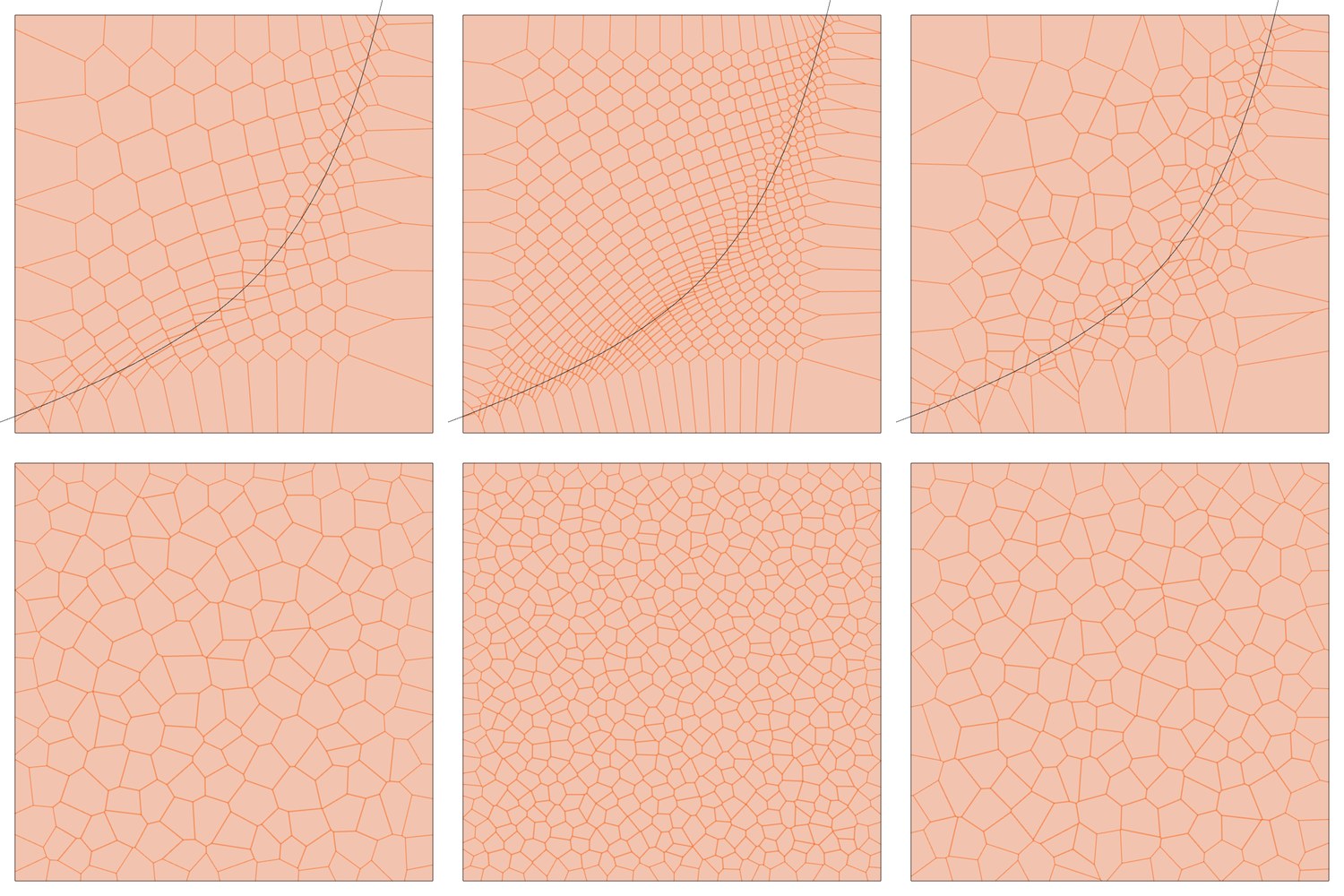

Voronoi Studies
Every grid through Attractor Seeds and Jitter Seeds, and Scatter Seeds on its own, each grown into a Voronoi in Region: sixteen studies in one definition.
Voronoi Grid 2.0
Study Page -

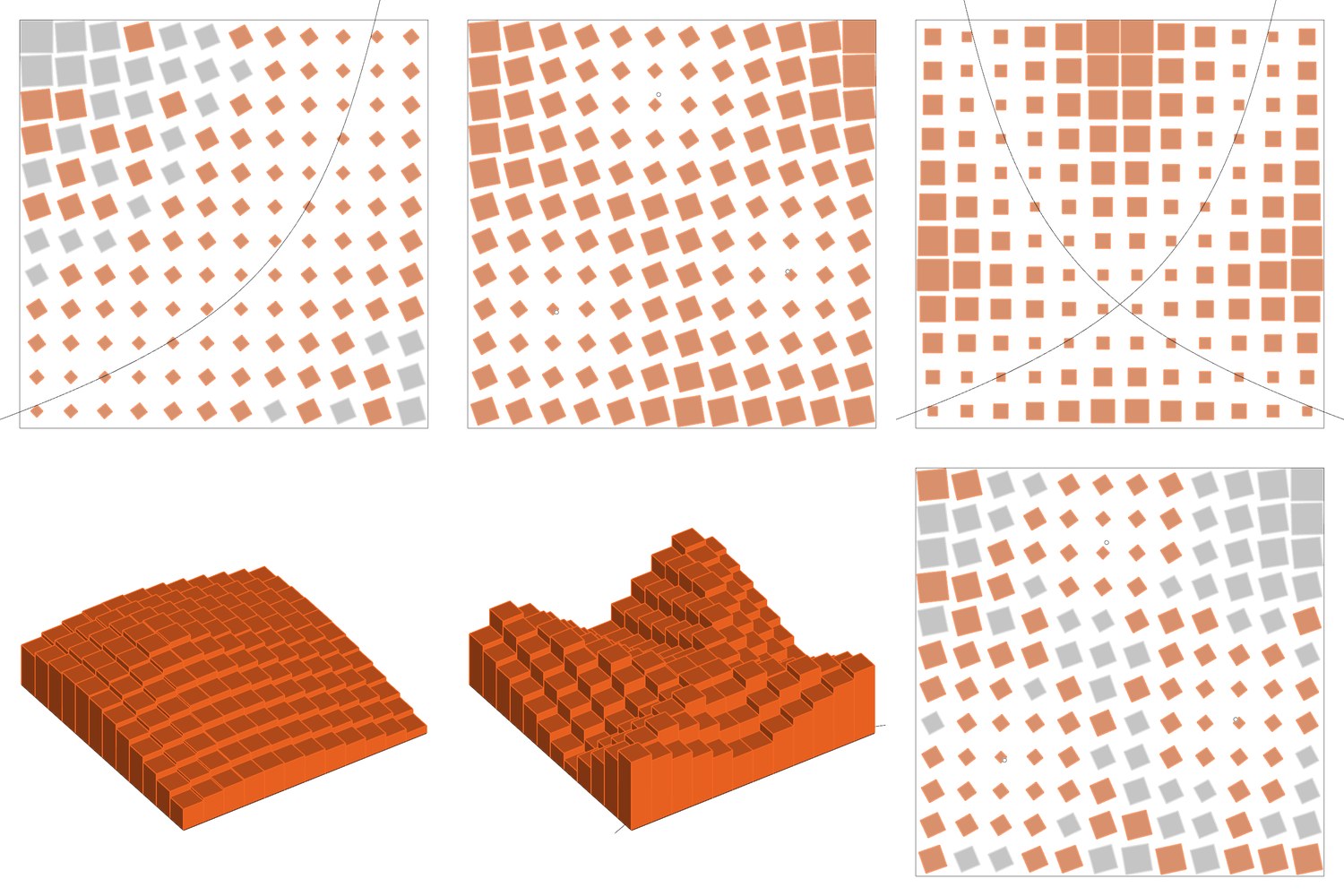

Modifier Studies
What an attractor can do to a grid: one point, three points, one curve and two curves, each driving scale, scale and rotate, scale, rotate and cull, and extruded solids.
Remap Transform Cull
Study Page -

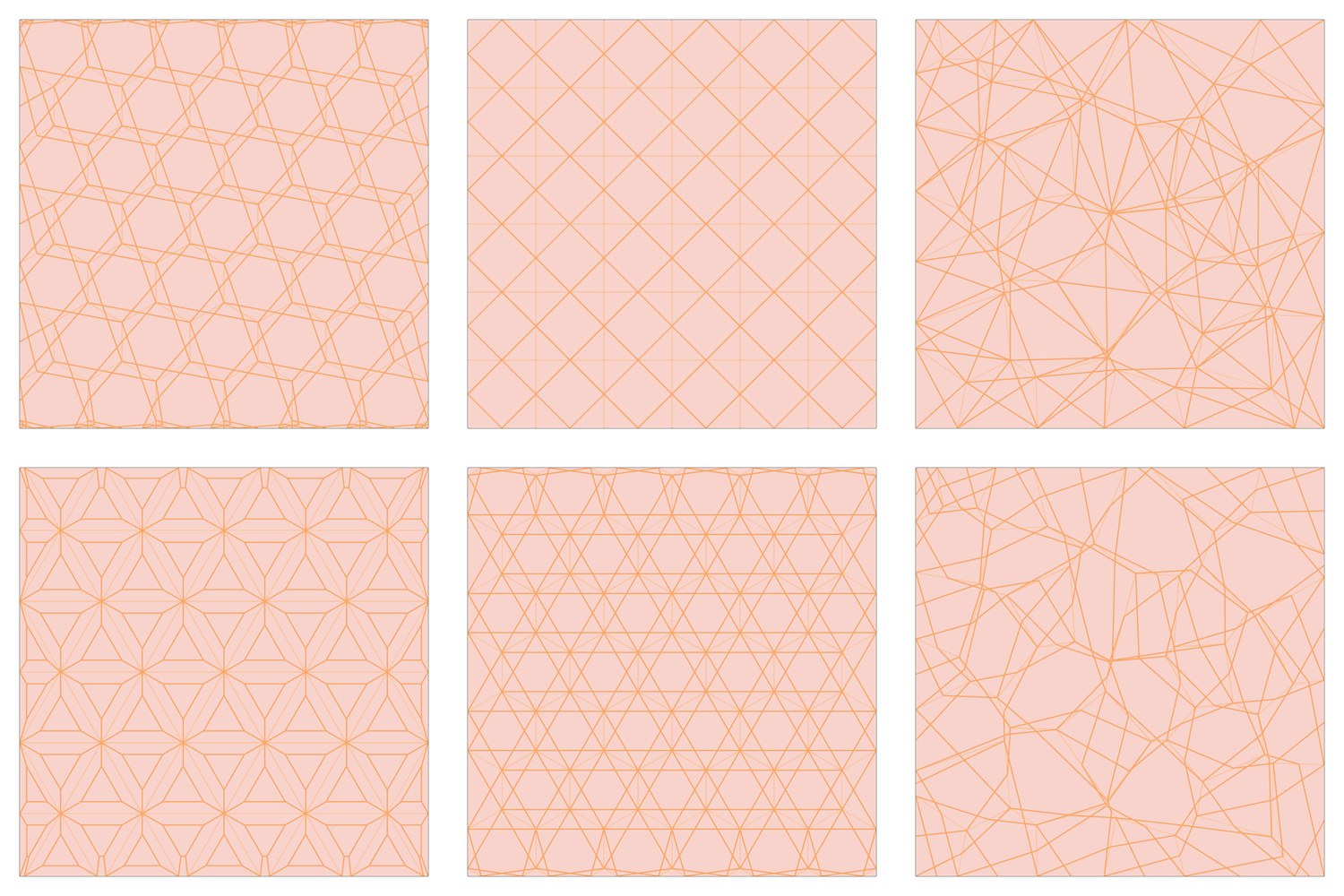

Lattice Studies
One chord family at a time: fan, medial, star, pinwheel, and an inner ring braced to the corners, each drawn by Lattice Pattern on squares, hexes, triangles and a Voronoi.
Pattern Grid Voronoi
Study Page -

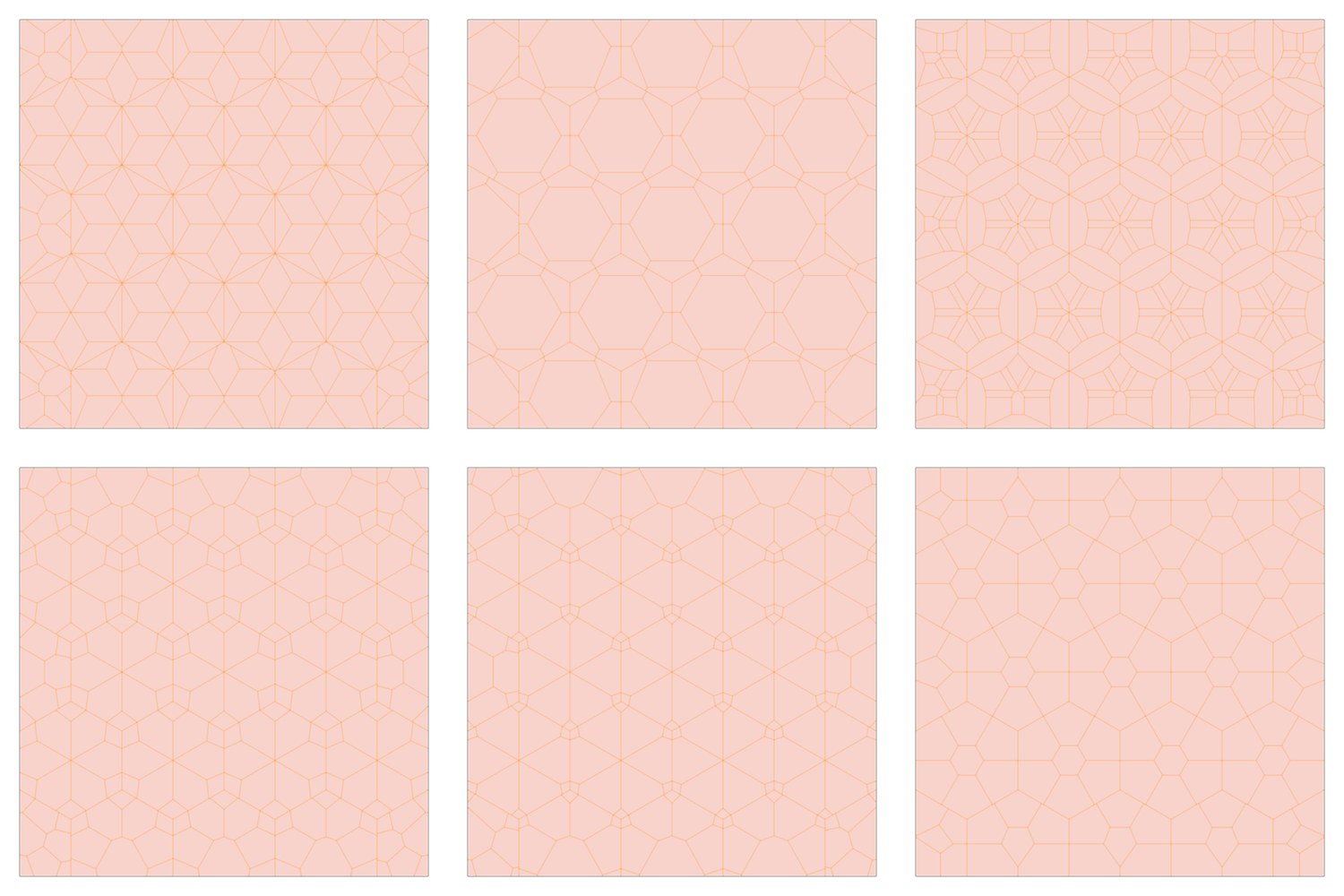

Voronoi Pattern Studies
Four sets of seed families on one hex grid, each with the inner copy at a quarter, half and three quarters of the cell, and outgrowing it.
Pattern Grid
Study Page -

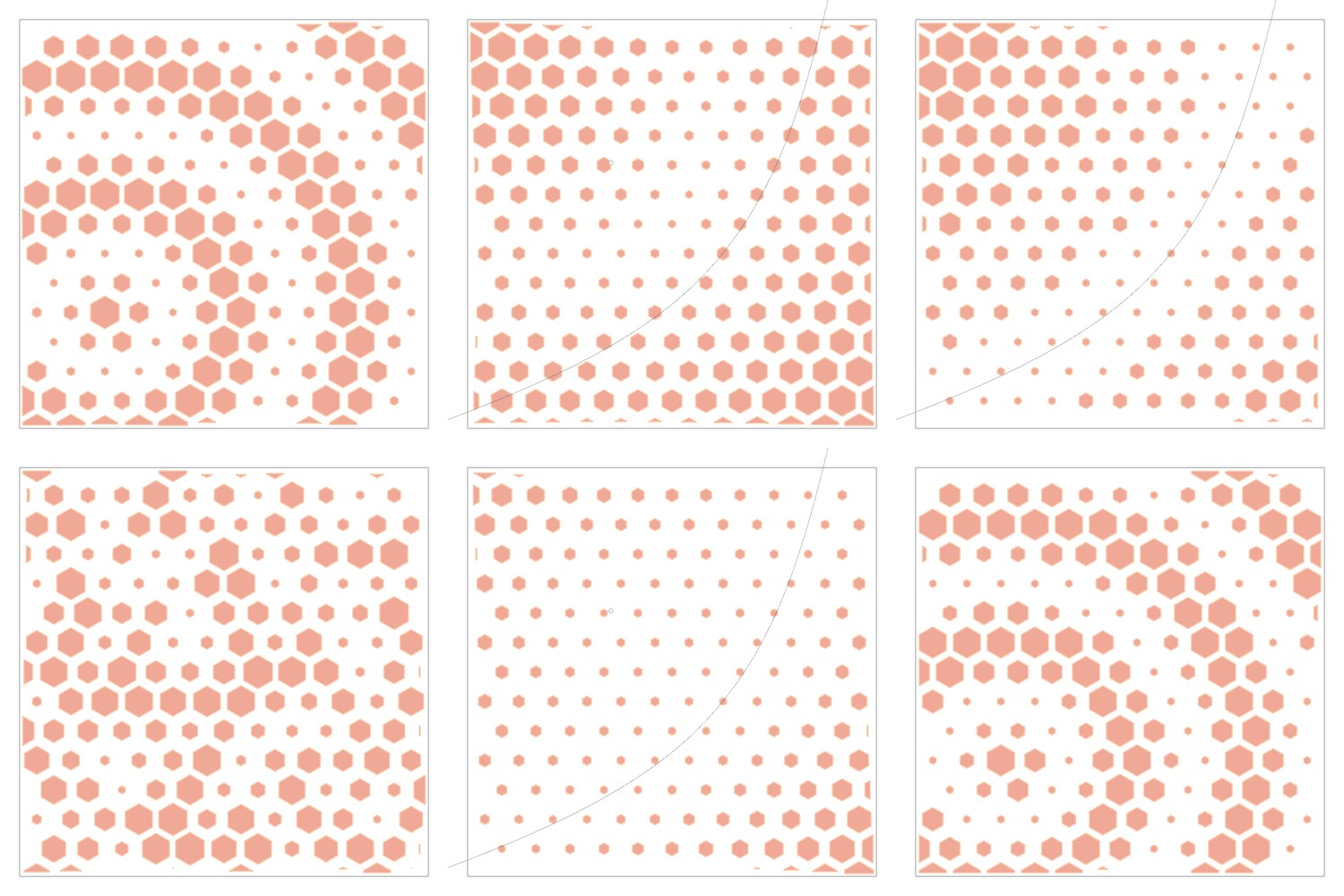

Field Studies
What drives the values: a point, a curve, an image and random values, the two attractor fields blended four ways, and every field stepped to four sizes, each insetting one hex grid.
Remap Transform
Study Page -

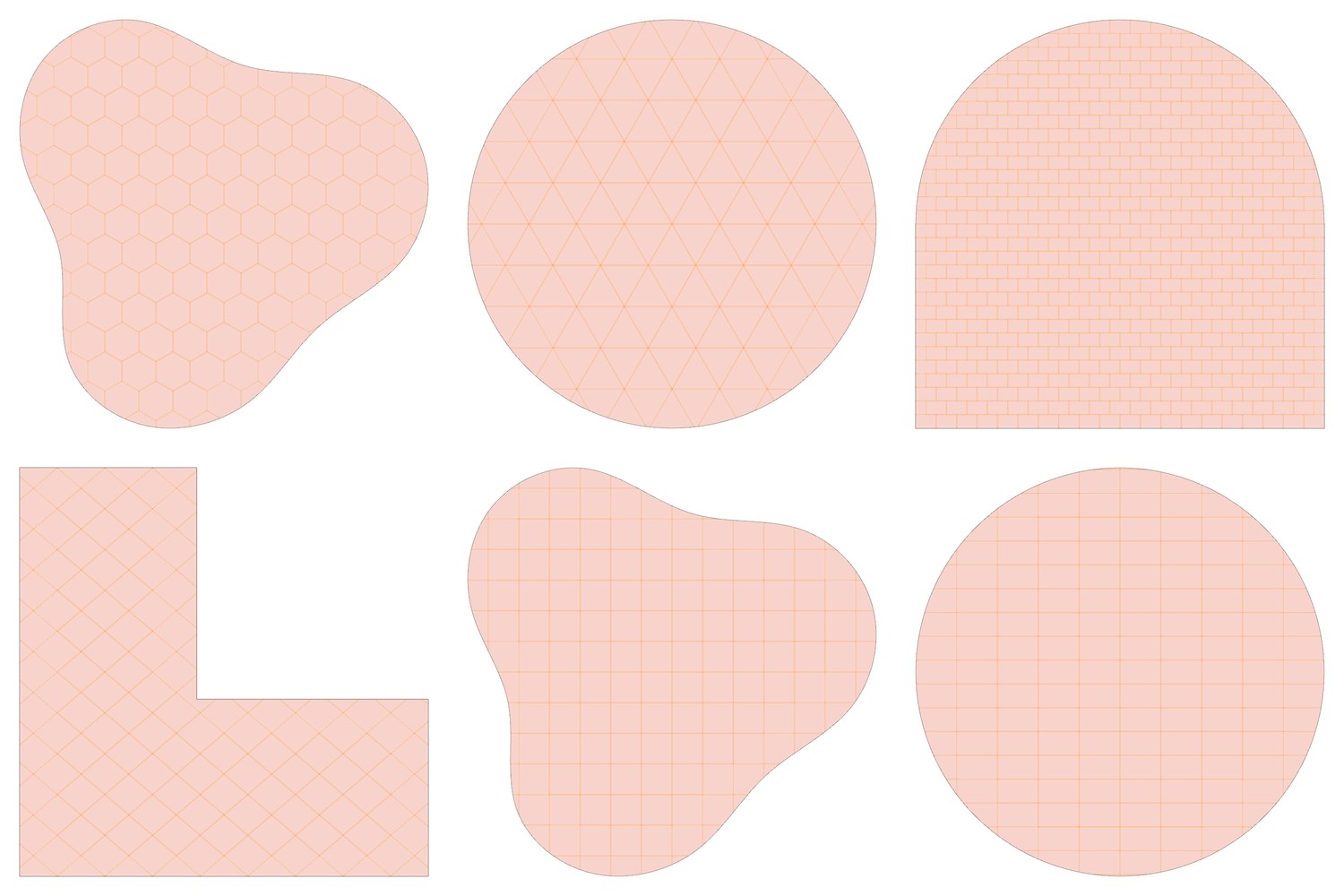

Region Studies
The seven grids in four regions that are not square: a circle, an arch, an L-shape and a freeform blob, to see where each grid meets the edge.
Grid
Study Page
